PPM-C407, PC/104

Product Manufacturer - WinSystems

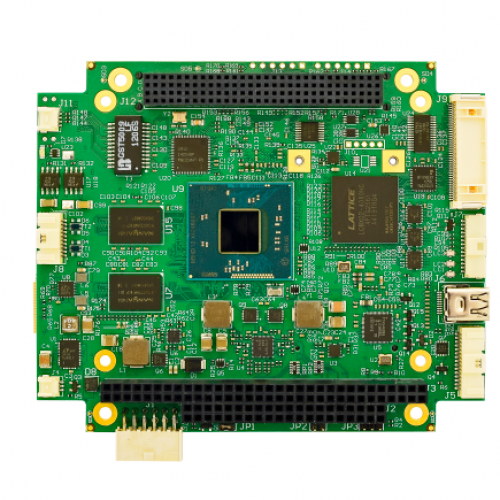

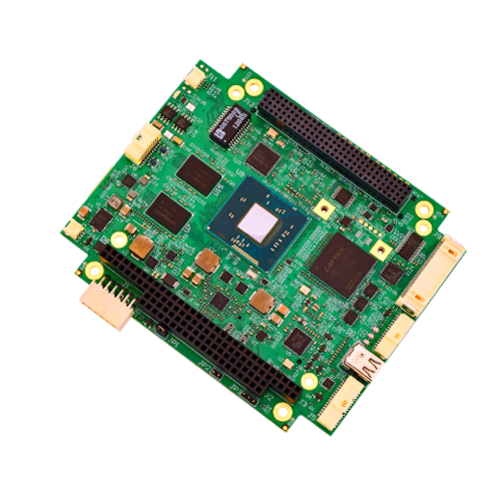

WINSYSTEMS’ PPM-C407 is a low power PC104 Single Board Computer (SBC) with long term availability. It utilizes the E3800 family of Atom™ processors from Intel®, which allows you to choose between low power single-core and higher performance dual or quad-core solutions in the versatile PC104-Plus form factor. Designed for harsh environments and reliability, it includes soldered RAM for added shock and vibration resistance with an operating temperature range from -40°C up to +85°C.



Product Features



▶︎ Multi-Core Intel® Atom™ E3800 Processors



▶︎ Up to 4 GB Soldered Down DDR3 RAM



▶︎ Two Fully Independent Displays (VGA, DisplayPort

  & LVDS



▶︎ 1 Gb Ethernet Controller



▶︎ Fanless -40° to +85°C operational temperature



▶︎ 4 Serial Ports and 4 USB 2.0 ports



▶︎ 24 Bidirectional GPIO with event sense



▶︎ Bus Expansion: MiniPCIe, PC/104 & PC/104-Plus



▶︎ Bootable SATA and mSATA

Product Specifications
  • Part number
  • PPM-C407, PC/104
  • Processors
  • Multi-Core Intel® Atom™ E3800 Processors
    E3815 single-core, 1.46GHZ
    E3825 dual-core, 1.33GHz
    E3845 quad-core, 1.91GHz
  • Operating System Compatibility
  • Linux, Windows, DOS and other x86 compatible OS
  • Memory (RAM)
  • Up to 4 GB of Soldered Down DDR3
  • Display
  • Intel Gen7 Graphics
    Up to 2 Simultaneous Active Displays
    VGA up to 2560×1536
    LVDS 18 or 24bpp
    DisplayPort Version 1.1
  • Storage
  • SATA 2.0 channel
    mSATA socket (shared with miniPCIe)
  • Digital I/O
  • 24 Bidirectional GPIO with event sense
  • Serial I/O
  • 4 serial ports (2x RS-232/422/485, 2x RS232)
  • Bus Expansion
  • PC/104
    PC/104-Plus
    Mini PCIe
  • USB
  • 4 USB 2.0 ports with surge suppression
  • Watchdog Timer
  • Adjustable from 3 seconds to 300 seconds reset
  • Audio
  • Audio
  • Power
  • +5V DC required
  • Compliance
  • RoHS-Compliant
  • Mechanical
  • Dimensions: 4.55 x 4.02 x 0.513 inches
    (115.57 x 102.11 x 13.03 mm)
  • Operating Temperature Range
  • -40°C to 85°C
