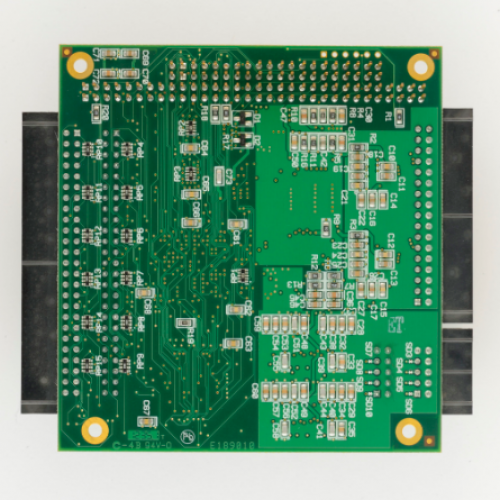

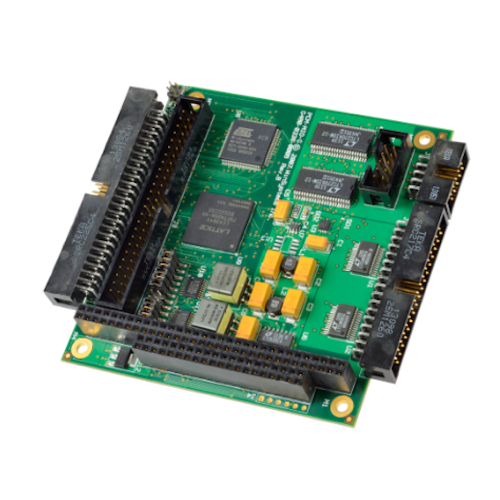

PCM-MIO-G-1, PC/104
Product Manufacturer - WinSystems
PC/104 Data Acquisition module incorporating 16 Analog-to-Digital (ADC) inputs, 8 Digital-to-Analog (DAC) outputs, and 48 bi-directional Digital I/O in a single module.
Product Features
▶︎ 16-bit Analog-to-Digital (ADC) converter with
sample-and-hold circuit
▶︎ Analog input ranges: 0-5V, 0-10V, ±5V
and ±10V
▶︎ 16 channels independently programmable for
input type and range
▶︎ No adjustment potentiometers or
calibration needed
▶︎ 12-bit Digital-to-Analog (DAC) converters
▶︎ Output ranges: 0-5V, 0-10V, ±2.5V, ±5V,
±10V, and -2.5V to 7.5V
▶︎ 8 independently programmable channels
▶︎ Channels can be updated and cleared individually
or simultaneously
▶︎ 48 lines of Digital I/O (GPIO)
▶︎ Each individually programmable for Input, Output
or Output with Readback
▶︎ 24 lines support event sense interrupts
▶︎ 12 mA sink current on outputs
▶︎ Industrial -40° to +85°C operational temperature
▶︎ Custom configurations available in OEM quantities
- Part number
- PCM-MIO-G-1, PC/104
- Analog Input
- – Two, 8-channel, 16-bit Analog-to-Digital Converters (ADC) with sample-and-hold circuit support
– Input ranges: 0-5V, 0-10V, ±5V and ±10V
– Any combination up to 16 single-ended or 8 differential inputs
– Each channel independently programmable for input type and range
– Input protection: ±25V
– Conversion Rate: 100 ksps max
– Programmable interrupt and DMA support
– Supports industry standard signal conditioners
- Analog Output
- – Two, 4-channel, 12-bit Digital-to-Analog Converters (DAC)
– Output ranges: 0-5V, 0-10V, ±2.5V, ±5V, ±10V, and -2.5V to 7.5V
– Each channel independently programmable for output and range
– Each channel can be updated and cleared individually or simultaneously
– Supports industry standard signal conditioners
- Digital I/O
- – 48 Bidirectional lines with Input, Output or Output with Readback (WS16C48)
– 12 mA Sink Current
– Compatible with industry standard I/O racks
- Bus Expansion
- PC/104
- Power
- +5V required, 500 mA typical
- Mechanical
- Dimensions: 3.6 x 3.8 inches
(90 x 96 mm)
Weight: 3.08 oz (87.32g)
- Operating Temperature Range
- -40°C to 85°C
