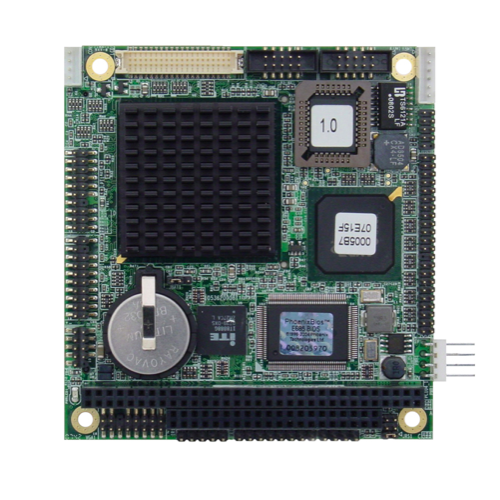

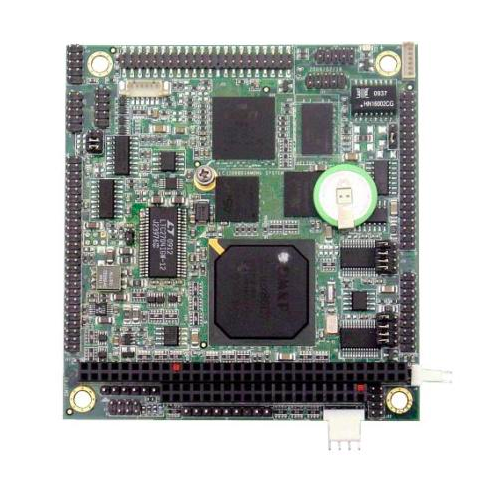

Helios is a low power, mid-range performance PC/104 form factor single board computer combining a highly integrated CPU with Diamond Systems’ renowned high-accuracy data acquisition circuitry on a single board, reducing size and cost while increasing ruggedness. Helios utilizes a Vortex integrated single chip CPU operating at 800MHz or 1GHz, and 256MB of DRAM soldered on-board.



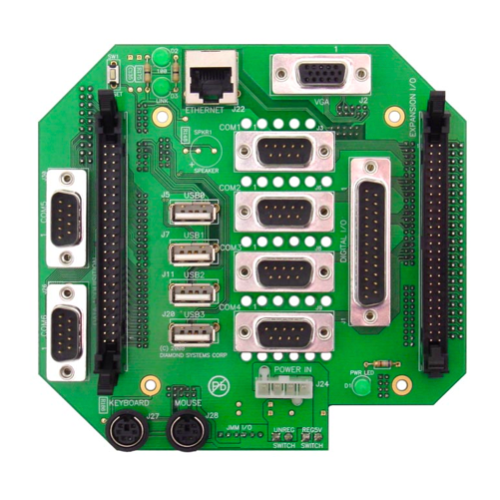

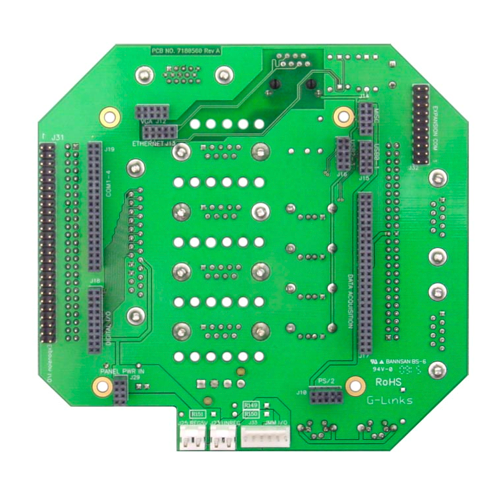

Helios incorporates advanced features such as four USB 2.0 ports, an IDE hard drive interface, mounting capability for a solid state flashdisk up to 4GB, and CRT/LVDS LCD graphics. Helios also provides a 10/100Base-T Ethernet interface, two RS-232 serial ports, two RS-232/422/485 serial ports and legacy keyboard and mouse interfaces.



Helios includes an on-board 2MB bootable flash drive with FreeDOS installed. This flash drive offers additional cost savings for DOS applications, since no additional storage medium is required. It also enables you to quickly verify Helios's operation. Just connect keyboard, monitor, and power, and Helios boots up to DOS so you can verify proper working condition as well as test the various features on the single board computer.



Helios is extremely rugged, featuring on-board soldered DRAM and -40°C to +85°C fan-less operation. Optional hardwired jumpers and latching connectors are available for increased resistance to shock and vibration. Conformal coating is available as an extra cost option.



CPU Features



▶︎ Vortex86DX CPU at 1GHz or 800MHz



▶︎ 256MB of soldered DRAM



▶︎ UOn-board 2MB bootable flash drive with FreeDOS installed



▶︎ 4 USB 2.0 ports



▶︎ 2 RS-232, 2 RS-232/422/485 serial ports



▶︎ 10/100Base-T Ethernet



▶︎ 1 IDE UDMA-100 port



▶︎ Flashdisk interface



▶︎ CRT and LVDS LCD



▶︎ PC/104 ISA expansion bus



▶︎ -40ºC to +85ºC operation

Product Specifications
  • Part number
  • Helios, PC/104 SBC
CPU
  • Processor
  • Vortex86DX at 1GHz or 800MHz
  • Memory
  • 256MB of on-board DRAM
  • Bus Interface
  • PC/104 (ISA)
  • Display Type
  • CRT and LVDS LCD
  • Display Resolution
  • 1280 x 1024 maximum
  • USB Ports
  • 4 x USB 2.0
  • Serial Ports
  • 2 x RS-232; 2 x RS-232/422/485
  • Networking
  • 10/100Base-T Ethernet
  • Mass Storage
  • (1) IDE UDMA-100 port, Flashdisk interface
  • On-board storage
  • 2MB bootable flash drive with FreeDOS installed
  • Keyboard / Mouse
  • PS/2
  • Input power
  • 5V ±5%
  • Power Consumption
  • • HLV800-256AV: 5.4W typical, 7.3W maximum
    • HLV800-256DV: 4.3W
  • Cooling
  • Heat sink, no fan
  • Operating Temperature
  • • -40°C to +85°C (800MHz models)
    • -40°C to +71°C (1GHz models)
  • Dimensions
  • 90mm x 96mm(3.550 in. x 3.775 in.)
  • Weight
  • 70.8g(2.5 oz)
  • MTBF
  • HLV800-256AV: 65,535 hours
  • RoHS
  • Compliant
Data Acquisition Specifications
  • Analog Inputs
  • 16 single-ended or 8 differential, user selectable
  • A/D resolution
  • 16 bits
  • Input ranges
  • ±10V, ±5V, ±2.5V, ±1.25V, 0-10V, 0-5V, 0-2.5V programmable
  • Max Sample Rate
  • 250KHz
  • Protection
  • ±35V on any analog input without damage
  • Nonlinearity
  • ±3LSB, no missing codes
  • On-board FIFO
  • 2048 samples, programmable threshold
  • A/D and D/A Calibration
  • Auto calibration with software support
  • Analog Outputs
  • 4, 12-bit resolution
  • Output ranges
  • ±5V, ±10V, 0-5V, 0-10V
  • Input impedance
  • 10^13 ohms
  • Output current
  • ±5mA max per channel
  • Settling time
  • 10µS max to 0.012%
  • Relative accuracy
  • ±2 LSB
  • Nonlinearity
  • ±2 LSB, monotonic
  • Reset
  • Reset to zero-scale or mid-scale (jumper selectable)
  • Digital I/O lines
  • Up to 40 programmable direction
  • Input voltage
  • • Logic 0: 0V min, 0.8V max
    • Logic 1: 2.0V min, 5.5V max
  • Input current
  • 1µA at 3.3V, -5µA at 0V
  • Output voltage
  • • Logic 0: 0.0V min, 0.55V max
    • Logic 1: 2.0V min, 3.3V max
  • Output current
  • • Logic 0: 64mA max at 0.55V
    • Logic 1: 32mA max at 2V
  • A/D Pacer clock
  • 24-bit down counter
  • Clock source
  • 10MHz on-board clock or external signal
  • General purpose
  • 16-bit down counter
