CMx-CM3-BT1, PCI/104

Product Manufacturer - ADLINK

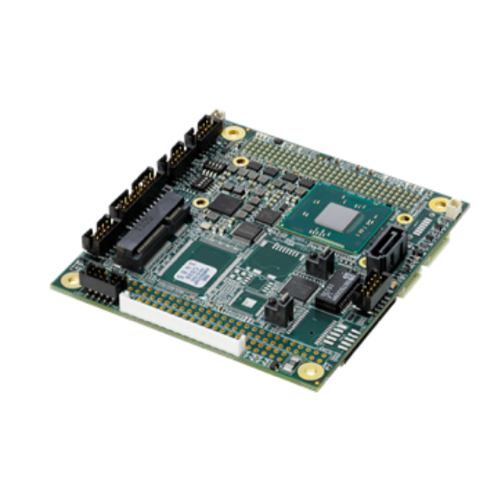

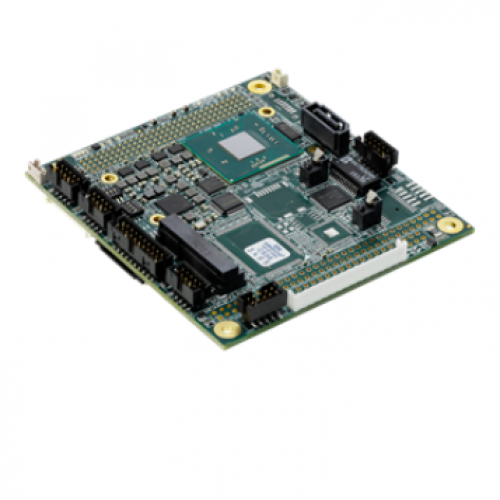

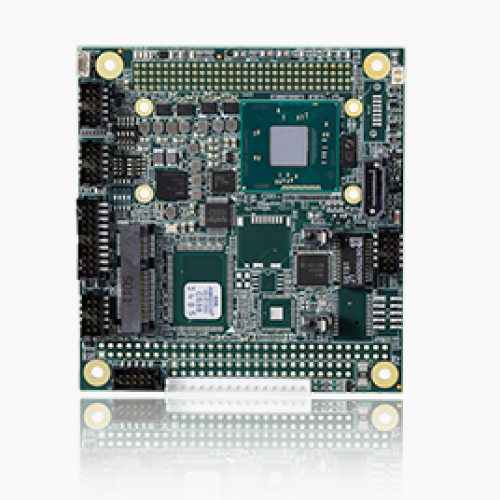

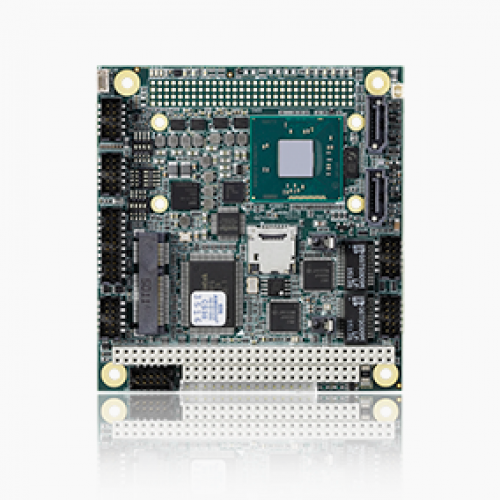

The CMx-BTx is a PC/104-based, Single Board Computer (SBC), fully compliant with the PCI-104 Specification, Version 1.1 and partially compliant with the PC/104 Specification, Version 2.6. PC/104 SBCs are very compact and highly integrated computers. This SBC features the 22nm, Intel® Bay Trail SoC. The board provides a DDR3L SO-DIMM socket, a PC/104 connector, a PCI-104 connector, two USB 2.0 ports, one USB 3.0 port, up to two Gigabit Ethernet ports, up to two SATA 3 Gb/s ports, one dedicated HD-Audio panel connector, one VGA port, one LVDS port, up to four COM ports, one mini-PCIe slot (with one USB 2.0 port included). The CMx-BTx can be run with only 5 volts and is capable of running operating systems like DOS, Windows XP/7/8 in either 32-bit or 64-bit configuration, Linux, VxWorks, and others. Another feature included on the board is a fail safe BIOS that enables the user to start the module even if the original BIOS is corrupted.



Product Features



▶︎ Single, dual or quad-core Intel® Atom™ or

  Celeron® Processors



▶︎ Up to 4GB DDR3L at 1333MHz



▶︎ Supports VGA and LVDS



▶︎ GbE, 1x SATA 3Gb/s



▶︎ 3x USB 2.0, 8x GPIO



▶︎ Extreme Rugged™ operating temperature:

  -40°C +85°C



▶︎ Supports Smart Embedded Management

  Agent (SEMA) functions

Product Specifications
  • Part number
  • CM3-BT1, PCI/104
Core System
  • CPU
  • Single-core Intel Atom® or Celeron® Processor System-on-Chip Atom® E3815
    (1C), 1.46 GHz, 400 MHz Gfx, 5W
    Supports: single, dual or quad Out-of-Order Execution (OOE) processor
    cores, Intel® VT-x, Intel® SSE4.1 and SSE4.2, Intel® 64 architecture, IA 32-bit,
    PCLMULQDQ Instruction DRNG, Intel® Thermal Monitor (TM1 & TM2)
    Note: Availability of features may vary between processor SKUs
  • Memory
  • Up to 4GB DDR3L-1066/1333 MHz DDR3L SO-DIMM
  • Embedded BIOS
  • AMI EFI with CMOS backup in 8MB SPI BIOS
  • Cache
  • Primary 32 KiB, 8-way L1 instruction cache and 24 KiB, 6-way L1 write-back
    data cache
  • Expansion Busses
  • PCI-104
  • SEMA Board Controller
  • Supports: Voltage/Current monitoring, Power Sequencing, Logistics and
    Forensic
    Information, Flat Panel Control, I²C Bus Control, GPIO Control, User Flash,
    Failsafe
    BIOS (dual BIOS), Watchdog Timer and Fan Control
  • Debug Headers
  • 40-pin multipurpose flat cable connector
    Note: Use in combination with DB-40 debug module providing BIOS POST code LED, BMC acces,
    SPI BIOS flashing, Power Testpoints, Debug LEDs
Audio
  • Chipset
  • Intel® HD Audio integrated in SoC
  • Audio Codec
  • ALC886
Ethernet
  • Intel® MAC/PHY
  • 2x Intel® i210 (MAC/PHY) Ehternet controller
  • Interface
  • 10/100/1000 GbE connection
LPC
  • LPC
  • LPC UART NCT5104D (Nuvoton)
Video
  • GPU Feature Support
  • 7th generation Intel® graphics core architecture with four execution units
    Supports two independent displays 3D graphics hardware acceleration
    Supports for DirectX 11, OCL 1.1, OGL ES Halt/2.0/1.1, OGL 3.2
    Video decode hardware acceleration including support for H.264, MPEG2,
    MVC, VC-1, WMV9 and VP8 formats Video encode hardware acceleration
    including support for H.264, MPEG2 and MVC formats
  • LVDS
  • Single/dual channel 18/24-bit LVDS from eDP
  • VGA
  • Yes
I/O Interfaces
  • USB
  • 3x USB 2.0 (1x on mSATA)
  • SATA
  • 1x SATA 3Gb/s shared with mSATA (optional 2nd SATA 3GB/s port w/o mSATA
    support)
  • GPIO
  • 8x
  • Serial
  • 2x RS-232/485 (with full handshake) + 2x RS-232/485 (TX,RX,CTS,RTS only)
Power
  • Standard Input
  • ATX = 5V±5% / 5Vsb ±5% or AT = 5V±5%
  • Management
  • ACPI 5.0 compliant
  • Power States
  • C1-C6, S0, S3, S4, S5 (Wake on USB S3/S4, Wake on LAN S3/S4/S5)
  • ECO mode
  • Supports deep S5 for power saving
Operation System
  • Standard Support
  • Windows 7/8 32/64-bit, Linux 32/64-bit
  • Extended Support (BSP)
  • WES7/8, WEC7, Linux, QNX, VxWorks
Mechanical and Environmental Form Factor
  • Form Factor
  • PC/104 Version 2.6
  • Dimensions
  • 90 mm x 96 mm
  • Operating Temperature
  • Standard: 0°C to +60°C
    Extended Temperature: -20°C to 70°C (SKU dependent, by screening)
  • Humidity
  • 5-90% RH operating, non-condensing
    5-95% RH storage (and operating with conformal coating)
  • Shock and Vibration
  • IEC 60068-2-64 and IEC-60068-2-27
    MIL-STD-202F, Method 213B, Table 213-I, Condition A and Method 214A,
    Table 214-I, Condition D
  • HALT
  • Thermal Stress, Vibration Stress, Thermal Shock and Combined Test
Intelligent Middleware SEMA®
  • Intelligent Middleware SEMA®
  • Local management, control of embedded computer systems
    Extended EAPI for monitoring, controlling and analytics applications
    Multiple OS support and across platforms (x86, ARM)
