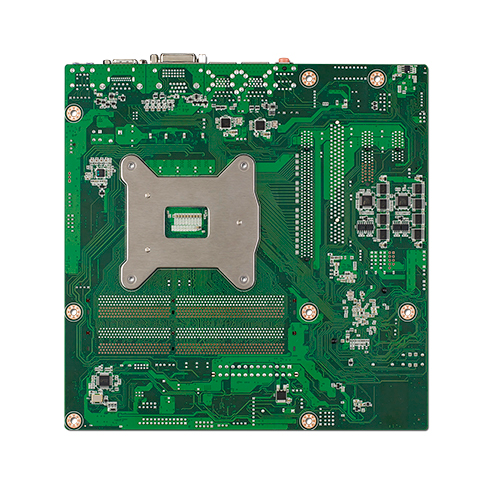

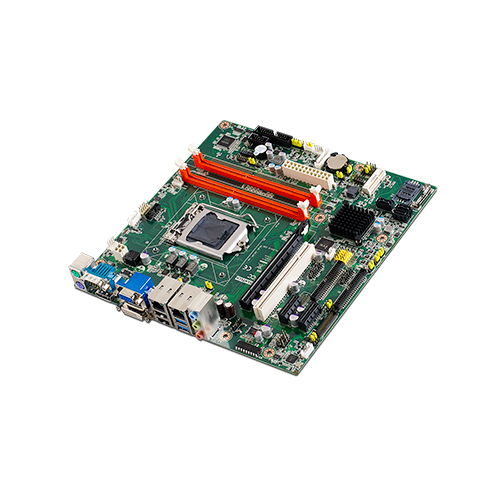

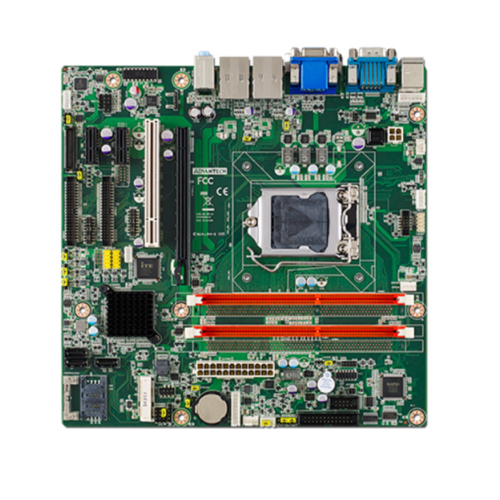

Advantech AIMB-503,
MicroATX Motherboards
下載規格書

AIMB-503, MicroATX Motherboards

Product Manufacturer - Advantech



▶︎ Supports Intel® Core™ i7/i5/i3 processor with B85/H81 chipset



▶︎ Two DIMM sockets support up to 16 GB DDR3/DDR3L 1333/1600 MHz

  SDRAM



▶︎ Supports Tri display of VGA, DVI, LVDS and two GbE LAN



▶︎ Supports 10 COM, 2 USB 3.0, 7 USB 2.0, TPM 1.2 (optional)



▶︎ Supports WISE PaaS/RMM, McAfee, Acronis and Embedded Software

  APIs

Product Specifications
  • Part number
  • AIMB-503G2-00A1E
  • AIMB-503L-00A1E
Form Factor
  • Form Factor
  • Micro ATX
  • Micro ATX
Processor
  • CPU
  • 4th Gen. Intel Core i7/i5/i3/Pentium/Celeron processor
  • 4th Gen. Intel Core i7/i5/i3/Pentium/Celeron processor
  • CPU TDP
  • 65W/54W/45W/35W
  • 65W/54W/45W/35W
  • Frequency
  • 2.3GHz~ 3.5GHz
  • 2.3 ~ 3.5 GHz
  • Core Number
  • 2 / 4
  • 2 / 4
  • L3 Cache
  • 3 ~ 8MB
  • 3 ~ 8MB
  • BIOS
  • AMI EFI 128Mbit
  • AMI EFI 128Mbit
  • Chipset
  • Intel H81
  • Intel H81
Memory
  • Technology
  • DDR3 1333/1600 MHz
  • DDR3 1333/1600 MHz
  • Max. Capacity
  • 16GB
  • 16GB
  • ECC Support
  • No
  • No
  • Socket
  • 2 x 204 pin SODIMM
  • 2 x 204 pin SODIMM
Display
  • Controller
  • Intel HD Graphics
  • Intel HD Graphics
  • Graphic Engine
  • DirectX 11, OpenCL1.1 and OpenGL 3.1 support
  • DirectX 11, OpenCL1.1 and OpenGL 3.1 support
  • Graphic Memory
  • 1GB maximum shared memory with 2GB and above system memory installed
  • 1GB maximum shared memory with 2GB and above system memory installed
  • VGA
  • 1
  • 1
  • LCD (TTL/LVDS/eDP)
  • LVDS (Optional)
  • 0
  • DDI (HDMI/DVI/DisplayPort)
  • DVI-D/DP
  • DVI-D/DP
  • Multiple Display
  • Dual
  • Dual
Expansion
  • PCI Express x 16
  • 1
  • 1
  • PCI Express x 4
  • 0
  • 0
  • PCI Express x 1
  • 2
  • 2
  • PCI
  • 1
  • -
  • SMBus
  • 0
  • 0
Ethernet
  • Controller
  • GbE LAN1: Realtek RTL8111E, GbE LAN2: Realtek RTL8111E
  • GbE LAN1: Realtek RTL8111E, GbE LAN2: Realtek RTL8111E
  • Speed
  • 10/ 100/ 1000 Mbps
  • 10/ 100/ 1000 Mbps
  • Connector
  • RJ45 x 2
  • RJ45 x 1
Audio
  • Audio Interface
  • HD Audio
  • HD Audio
  • CODEC
  • Realtek ALC892, High Definition Audio (HD)
  • Realtek ALC892, High Definition Audio (HD)
  • Connector
  • 2 (Line out, Mic-in)
  • 2 (Line out, Mic-in)
Watchdog Timer
  • Watchdog Timer
  • Yes
  • Yes
Storage
  • RAID
  • Software RAID 0, 1, 5, 10
  • Software RAID 0, 1, 5, 10

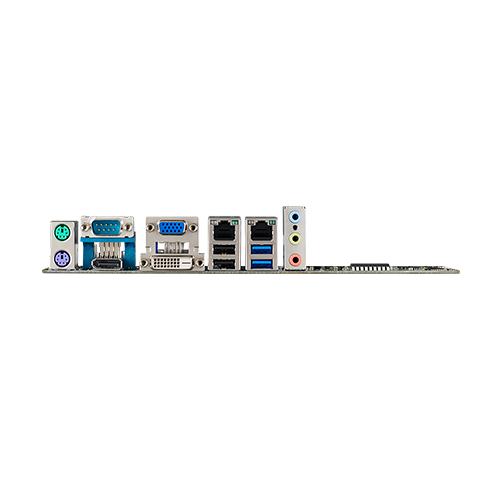

I/O
  • USB3.0
  • 2
  • 2
  • USB2.0
  • 7
  • 7
  • GPIO
  • 8-bit GPIO
  • 8-bit GPIO
  • LPT
  • 1
  • 0
  • COM Port
  • 10 ( 8 x RS232, 2 x RS232/ 422/ 485)
  • 2 ( 2 x RS-232 )
  • Keypad
  • 0
  • 0
  • TPM
  • Optional
  • Optional
  • Smart Fan
  • 5
  • 5
Power
  • Power Type
  • ATX
  • ATX
  • Connector
  • ATX24P
  • ATX24P
  • Power Consumption (Idle)
  • 1A @ 5V / 0.94A @ 3.3V / 0.44A @ 12V / 0.23A @ 5Vsb / 0A @ -12V/1.91A @ 5V / 0.27A @ 3.3V / 0.64A @ 12V / 0.16A @ 5Vsb / 0.14A @ -12V
  • 1A @ 5V / 0.94A @ 3.3V / 0.44A @ 12V / 0.23A @ 5Vsb / 0A @ -12V/1.91A @ 5V / 0.27A @ 3.3V / 0.64A @ 12V / 0.16A @ 5Vsb / 0.14A @ -12V
  • Power Consumption (Full Load)
  • 3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V
  • 3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V
  • Battery
  • Lithium 3 V / 200 mAh
  • Lithium 3 V / 200 mAh
Environment
  • Operational Temperature
  • 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
  • 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
  • Non-Operational Temperature
  • -40~ 85° C
  • -40~ 85° C
  • Vibration Resistance
  • 3.5 Grm (Non-Operation Mode)
  • 3.5 Grm (Non-Operation Mode)
Physical
  • Dimension (mm)
  • 244 x 244 mm
  • 244 x 244 mm
  • Weight
  • 1.2 kg (2.64 lb), weight of total package
  • 1.2 kg (2.64 lb), weight of total package
Operating System
  • Microsoft Windows
  • Yes
  • Yes
  • Linux
  • Yes
  • Yes
  • SUSIAccess
  • Yes
  • Yes
Certification
  • EMC
  • CE/FCC Class B
  • CE/FCC Class B
