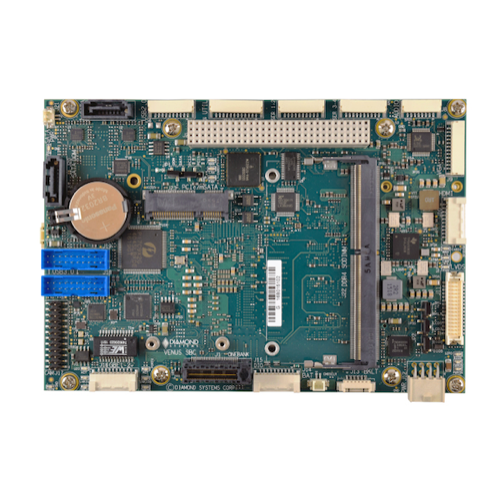

Venus, 3.5" SBC

Product Manufacturer - Diamond Systems

Based on the "Skylake" or “Kaby Lake” 6th and 7th generation processors, Venus offers the highest available CPU performance in a small form factor rugged SBC with modest power consumption. It incorporates a full suite of rugged features such as soldered memory, latching connectors, a thicker PCB, and true -40/+85ºC operating temperature, making it suitable for the most demanding vehicle applications. High I/O density, multiple expansion sockets, rugged design, modest power consumption of 14W, and wide temperature operation combine to make Venus an extremely attractive option for applications requiring high CPU performance or ruggedness.

Product Features

▶︎　Intel "Skylake" 6th Gen Core i7-6600U 2.6GHz, or i5-6300U 2.4GHz

▶︎　Intel “Kaby Lake” 7th Gen Core i7-7660U 2.8GHz

▶︎　4GB DDR4 RAM soldered on board

▶︎　Expansion socket for up to 16GB additional / 20GB total RAM

▶︎　2x Gigabit Ethernet

▶︎　2x SATA 3.0 ports + mSATA socket

▶︎　VGA, HDMI & dual channel LVDS with 3 simultaneous independent display support

▶︎　4x RS-232/422/485 ports

▶︎　6x USB 2.0 ports

▶︎　4x USB 3.0 ports

▶︎　HD audio

▶︎　16 GPIO lines with 3.3/ 5V logic levels

▶︎　TPM module

▶︎　CSI camera serial interface

▶︎　2x PCIe MiniCard sockets; one socket supports mSATA

▶︎　OneBank-Plus PCIe/104 + PCI-104 expansion socket

▶︎　9-18VDC input volta

▶︎　14W power consumption typical

▶︎　3.5 inch form factor: 5.75" x 4.0" (146mm x 102mm)

▶︎　-40°C to +85°C operating temperature

▶︎　Bottom-mounted heat spreader cooling
