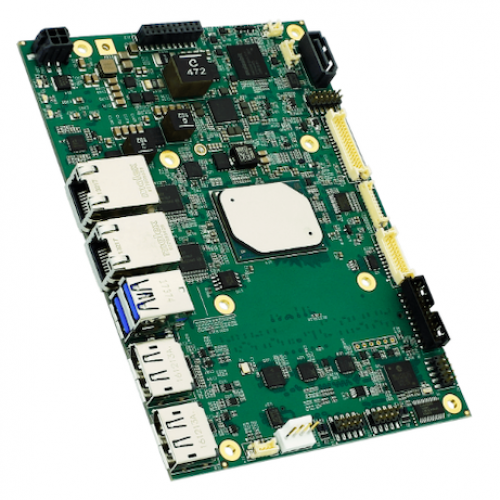

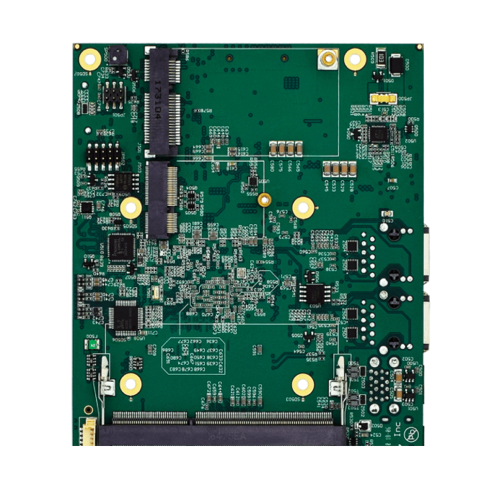

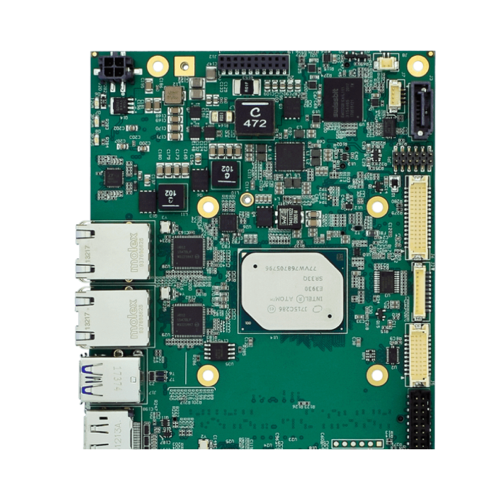

SBC35-427, 3.5” SBC
Product Manufacturer - WinSystems
WINSYSTEMS’ SBC35-427 is an industrial single board computer, which uses Intel®’s Apollo Lake-I E3900 series processor. Its combination of off-the-shelf functionality with multiple expansion and configuration options make it a great fit for industrial IoT applications.
Product Features
▶︎ Intel® Bay Trail E3900 Processor
▶︎ Three Simultaneous Display Outputs
▶︎ Dual DisplayPort
▶︎ LVDS with digital backlight and touch support
▶︎ Two 10/100/1000 Mbps Ethernet Ports
▶︎ Two USB 3.0 Ports
▶︎ Four USB 2.0 Ports
▶︎ Eight Bidirectional GPIO
▶︎ Two Analog-to-Digital (ADC) Inputs
▶︎ Two Serial Ports (RS-232/422/485)
▶︎ One Serial Port (RS-232)
▶︎ One MiniPCIe/MSATA Socket
▶︎ One M.2 E-Key Socket
▶︎ Hi-Definition Audio
▶︎ Onboard eMMC SSD up to 64G
▶︎ mSATA
▶︎ -40°C to +85°C Operational Temperature
▶︎ 3.5-Inch Single Board Computer (SBC)
- Part number
- SBC35-427-3950-M-0
- SBC35-427-3940-M-0
- SBC35-427-3930-M-0
- Processor
- Intel Atom x5-E3950 Quad-Core 2.0GHz
- Intel Atom x5-E3940 Quad-Core 1.8GHz
- Intel Atom x5-E3930 Dual-Core 1.8GHz
- Operating System Compatibility
- Linux, Windows, DOS and other x86 compatible OS
- Linux, Windows, DOS and other x86 compatible OS
- Linux, Windows, DOS and other x86 compatible OS
- Memory (RAM)
- Up to 8 GB of DDR3LV with ECC SODIMM (Socketed)
- Up to 8 GB of DDR3LV with ECC SODIMM (Socketed)
- Up to 8 GB of DDR3LV with ECC SODIMM (Socketed)
- BIOS
- AMI – UEFI
- AMI – UEFI
- AMI – UEFI
- Display
- Three independent display outputs:
LVDS with digital backlight and touch control
2x DisplayPort (Front Panel I/O) - Three independent display outputs:
LVDS with digital backlight and touch control
2x DisplayPort (Front Panel I/O) - Three independent display outputs:
LVDS with digital backlight and touch control
2x DisplayPort (Front Panel I/O)
- Ethernet
- 2 Intel® 10/100/1000 Mbps controllers
- 2 Intel® 10/100/1000 Mbps controllers
- 2 Intel® 10/100/1000 Mbps controllers
- Storage
- 1 eMMC up to 64G
1 mSATA Socket
1 SATA 3.1 - 1 eMMC up to 64G
1 mSATA Socket
1 SATA 3.1 - 1 eMMC up to 64G
1 mSATA Socket
1 SATA 3.1
- Data Acquistion
- 8 lines of general purpose I/O
2 channels ADC (16 bit resolution) - 8 lines of general purpose I/O
2 channels ADC (16 bit resolution) - 8 lines of general purpose I/O
2 channels ADC (16 bit resolution)
- Serial I/O
- 1 serial ports (RS-232)
2 serial ports (RS-232/422/485) - 1 serial ports (RS-232)
2 serial ports (RS-232/422/485) - 1 serial ports (RS-232)
2 serial ports (RS-232/422/485)
- Expansion
- Mini PCI Express Socket
M.2 Socket (E-Key)
WinSystems IO80 - Mini PCI Express Socket
M.2 Socket (E-Key)
WinSystems IO80 - Mini PCI Express Socket
M.2 Socket (E-Key)
WinSystems IO80
- USB
- 4 USB 2.0 ports
2 USB 3.0 ports - 4 USB 2.0 ports
2 USB 3.0 ports - 4 USB 2.0 ports
2 USB 3.0 ports
- Watchdog Timer
- Adjustable from 1 second to 255 minute reset
- Adjustable from 1 second to 255 minute reset
- Adjustable from 1 second to 255 minute reset
- Audio
- HD Audio supported
- HD Audio supported
- HD Audio supported
- Power
- Wide Input: +10-50V DC
- Wide Input: +10-50V DC
- Wide Input: +10-50V DC
- Mechanical
- Dimensions: 5.75 x 4.02 inches (146 x 102 mm)
Weight: TBD oz (TBDg)
PC Board thickness: 0.078 inches (1.98mm) - Dimensions: 5.75 x 4.02 inches (146 x 102 mm)
Weight: TBD oz (TBDg)
PC Board thickness: 0.078 inches (1.98mm) - Dimensions: 5.75 x 4.02 inches (146 x 102 mm)
Weight: TBD oz (TBDg)
PC Board thickness: 0.078 inches (1.98mm)
- Operating Temperature Range
- -40°C to 85°C
- -40°C to 85°C
- -40°C to 85°C
