ITX-N-3900, Single Board Computers(SBC)

Product Manufacturer - WinSystems

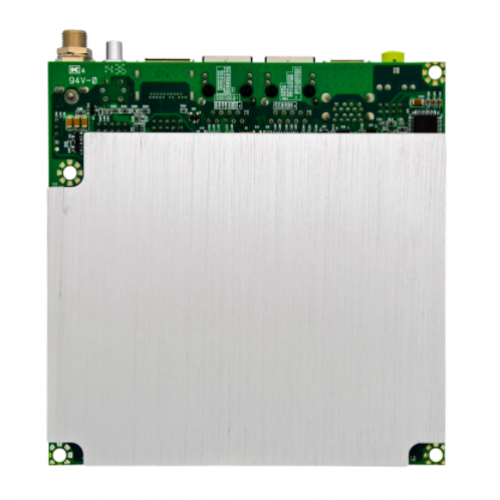

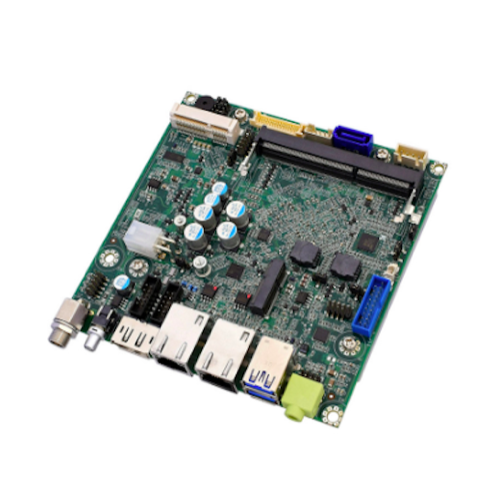

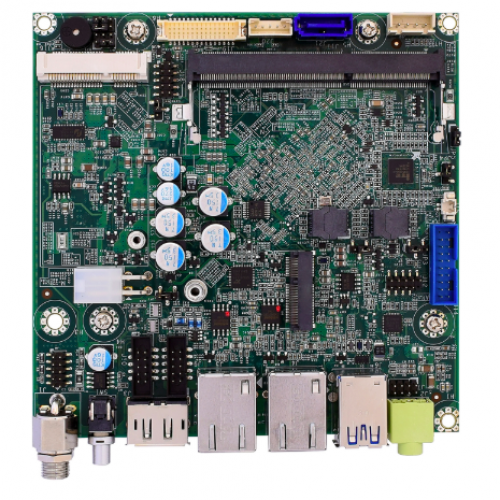

WINSYSTEMS’ ITX-N-3900 is a NANO-ITX Single Board Computer (SBC) based on the Intel® Atom™ E3900 Apollo Lake processor family. It uses less than 12 watts for fanless applications and performs reliably in industrial operating temperatures ranging from -40º to +85ºC. It includes a SODIMM socket supporting up to 8 GB of DDR3L system memory, one high-speed SATA storage interface, microSD storage,and one mSATA storage interface.



The ITX-N-3900 is designed for long-term availability and supports Linux, Windows® 10 desktop, Windows 10 IoT, and other x86-compatible real-time operating systems (RTOS). Drivers are available from the WINSYSTEMS website.



Product Features



▶︎ Intel® Bay Trail E3950/E3940/E3930 Processor



▶︎ NANO-ITX Form Factor (120mm x 120mm)



▶︎ -40°C to +85°C Operational Temperature



▶︎ Up to 8GB DDR3-LV RAM



▶︎ Intel Low Power Gen9 Graphics Engine



▶︎ Dual Gigabit Ethernet



▶︎ 4 USB 3.1 Ports



▶︎ Hardware Security TPM 2.0 on board

Product Specifications
  • Part number
  • Intel Atom E3930 Dual Core
  • Intel Atom E3940
  • Intel Atom E3950
  • Processor
  • • up to 1.8 GHz
    • Cache up to 2MB (for Quad Core)
    • Support Intel® VT-x technology
  • • Quad Core, up to 1.8 GHz
    • Cache up to 2MB (for Quad Core)
    • Support Intel® VT-x technology
  • • Quad Core, up to 2.0 GHz
    • Cache up to 2MB (for Quad Core)
    • Support Intel® VT-x techology
  • Memory
  • • Up to 8GB DDR3L 1600/1866 SDRAM on 1x 204pin SODIMM
  • • Up to 8GB DDR3L 1600/1866 SDRAM on 1x 204pin SODIMM
  • • Up to 8GB DDR3L 1600/1866 SDRAM on 1x 204pin SODIMM
  • Storage
  • • 1x SATA 3.0
    • 1x mSATA
    • 1x Micro SD socket
  • • 1x SATA 3.0
    • 1x mSATA
    • 1x Micro SD socket
  • • 1x SATA 3.0
    • 1x mSATA
    • 1x Micro SD socket
Display
  • Graphic Controller
  • • Intel® Gen 9 graphic engine supports DirectX 12, OpenGL 4.2 / OpenCL 2.0
    • Video decode hardware acceleration supports for H.264, H.265, MPEG2, MVC, VC-1, WMV9 , JPEG, VP8, and VP9
  • • Intel® Gen 9 graphic engine supports DirectX 12, OpenGL 4.2 / OpenCL 2.0
    • Video decode hardware acceleration supports for H.264, H.265, MPEG2, MVC, VC-1, WMV9 , JPEG, VP8, and VP9
  • • Intel® Gen 9 graphic engine supports DirectX 12, OpenGL 4.2 / OpenCL 2.0
    • Video decode hardware acceleration supports for H.264, H.265, MPEG2, MVC, VC-1, WMV9 , JPEG, VP8, and VP9
  • Display Interface
  • • LVDS: Dual channel 24bit LVDS on board connector, resolution up to 1920x1200 @60Hz
    • VGA: 1x on-board connector, resolution up to 2560x1600
    • DP: 1x DP port on rear I/O, resolution up to 4096x2160
  • • LVDS: Dual channel 24bit LVDS on board connector, resolution up to 1920x1200 @60Hz
    • VGA: 1x on-board connector, resolution up to 2560x1600
    • DP: 1x DP port on rear I/O, resolution up to 4096x2160
  • • LVDS: Dual channel 24bit LVDS on board connector, resolution up to 1920x1200 @60Hz
    • VGA: 1x on-board connector, resolution up to 2560x1600
    • DP: 1x DP port on rear I/O, resolution up to 4096x2160
  • Network Interface
  • • 1x Serial Port RS232/422/485 on-board connector
    • 2x USB 3.1 Gen 1 ports on rear I/O
    • 2x USB 3.1 Gen 1 ports on board with 2.0mm pitch header
    • GPIO: 8bit configurable controlled by embedded controller
    • 1x Intel I210IT Gigabit Ethernet controller
    and 1x RJ45 connector on rear I/O
  • • 1x Serial Port RS232/422/485 on-board connector
    • 2x USB 3.1 Gen 1 ports on rear I/O
    • 2x USB 3.1 Gen 1 ports on board with 2.0mm pitch header
    • GPIO: 8bit configurable controlled by embedded controller
    • Dual Intel I210IT Gigabit Ethernet controller
    • 2x RJ45 connectors on rear I/O
  • 1x Serial Port RS232/422/485 on-board connector
    • 2x USB 3.1 Gen 1 ports on rear I/O
    • 2x USB 3.1 Gen 1 ports on board with 2.0mm pitch header
    • GPIO: 8bit configurable controlled by embedded controller
    • Dual Intel I210IT Gigabit Ethernet controller
    • 2x RJ45 connectors on rear I/O
  • Onboard I/O
  • • HDA controller integrated in Intel® SoC
    • Realtek ALC892 HDA codec, audio jack on rear I/O with Line-out and onboard pin header with Line-in, Line-out and Mic-in
    • Watchdog timer programmable by embedded controller
  • • HDA controller integrated in Intel® SoC
    • Realtek ALC892 HDA codec, audio jack on rear I/O with Line-out and onboard pin header with Line-in, Line-out and Mic-in
    • Watchdog timer programmable by embedded controller
  • • HDA controller integrated in Intel® SoC
    • Realtek ALC892 HDA codec, audio jack on rear I/O with Line-out and onboard pin header with Line-in, Line-out and Mic-in
    • Watchdog timer programmable by embedded controller
  • Expansion Bus
  • • 1x PCI Express Mini Card
    • 1x M.2 socket (Type E)
  • • 1x PCI Express Mini Card
    • 1x M.2 socket (Type E)
  • • 1x PCI Express Mini Card
    • 1x M.2 socket (Type E)
  • Power
  • • Typical power 12 - 24V DC input, 9 Watts
  • • Typical power 12 - 24V DC input, 9 Watts
  • • Typical power 12 - 24V DC input, 9 Watts
  • Software
  • • Phoenix EFI BIOS
  • • Phoenix EFI BIOS
  • • Phoenix EFI BIOS
Environmental
  • Operation temperature
  • -40°C to +85°C
  • -40°C to +85°C
  • -40°C to +85°C
  • Storage temperature
  • -40°C to +85°C
  • -40°C to +85°C
  • -40°C to +85°C
  • Relative humidity
  • 5 to 95%, non-condensing
  • 5 to 95%, non-condensing
  • 5 to 95%, non-condensing
Mechanical
  • Dimensions
  • 120mm x 120mm(4.72 in. x 4.72 in.)
  • 120mm x 120mm(4.72 in. x 4.72 in.)
  • 120mm x 120mm(4.72 in. x 4.72 in.)
  • Weight
  • 0.272 kg(0.60 lbs)
  • 0.272 kg(0.6 lbs)
  • 0.272 kg(0.60 lbs)
