CMx-CM3-BT4, PCI/104
Product Manufacturer - ADLINK

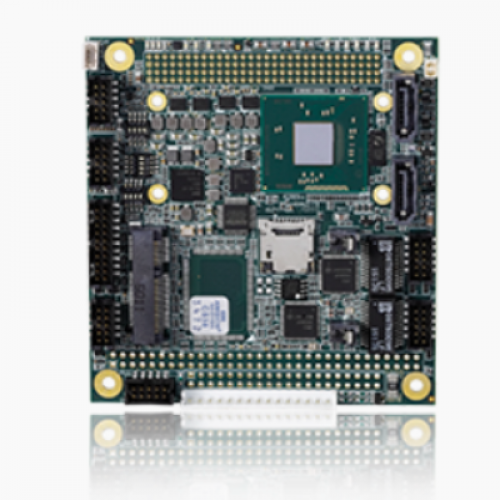

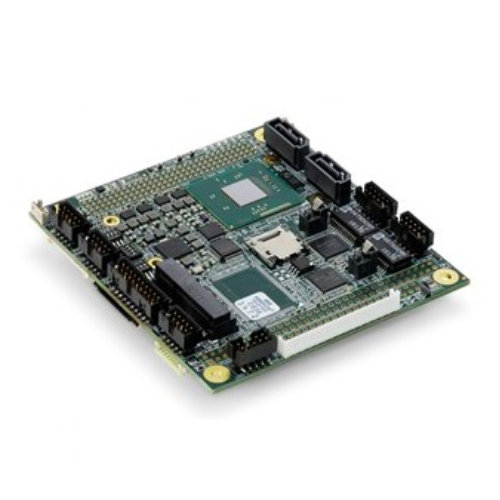

The CMx-BTx is a PC/104-based, Single Board Computer (SBC), fully compliant with the PCI-104 Specification, Version 1.1 and partially compliant with the PC/104 Specification, Version 2.6. PC/104 SBCs are very compact and highly integrated computers. This SBC features the 22nm, Intel® Bay Trail SoC. The board provides a DDR3L SO-DIMM socket, a PC/104 connector, a PCI-104 connector, two USB 2.0 ports, one USB 3.0 port, up to two Gigabit Ethernet ports, up to two SATA 3 Gb/s ports, one dedicated HD-Audio panel connector, one VGA port, one LVDS port, up to four COM ports, one mini-PCIe slot (with one USB 2.0 port included). The CMx-BTx can be run with only 5 volts and is capable of running operating systems like DOS, Windows XP/7/8 in either 32-bit or 64-bit configuration, Linux, VxWorks, and others. Another feature included on the board is a fail safe BIOS that enables the user to start the module even if the original BIOS is corrupted.
Product Features
▶︎ Quad-core Intel® Atom™ Processor System-on-Chip
▶︎ Up to 4GB DDR3L at 1333MHz
▶︎ Supports VGA and LVDS
▶︎ GbE (optional 2x GbE)
▶︎ 1x SATA 3Gb/s (optional 2x SATA), 3x USB 2.0,
8x GPIO
▶︎ Extreme Rugged operating temperature:
-40°C to +85°C
▶︎ Supports Smart Embedded Management Agent
(SEMA) functions
- Part number
- CM3-BT4, PCI/104
- CPU
- Quad-core Intel Atom® Processor SoC Atom™ E3845 (4C), 1.91 GHz, 542/792(Turbo), 10W
Supports: single, dual or quad Out-of-Order Execution (OOE) processor cores, Intel VT-x, Intel® SSE4.1 and SSE4.2, Intel® 64 architecture, IA 32-bit, PCLMULQDQ Instruction DRNG, Intel® Thermal Monitor (TM1 & TM2)
- Memory
- Up to 4GB DDR3L-1066/1333 MHz DDR3L SO-DIMM
- Embedded BIOS
- AMI EFI with CMOS backup in 8MB SPI BIOS
- Cache
- Primary 32 KiB, 8-way L1 instruction cache and 24 KiB, 6-way L1 write-back data cache
- Expansion Busses
- PCI-104
- SEMA Board Controller
- Supports: Voltage/Current monitoring, Power Sequencing, Logistics and
Forensic
Information, Flat Panel Control, I²C Bus Control, GPIO Control, User Flash,
Failsafe
BIOS (dual BIOS), Watchdog Timer and Fan Control
- Debug Headers
- 40-pin multipurpose flat cable connector
- Chipset
- Intel® HD Audio integrated in SoC
- Audio Codec
- ALC886
- Intel® MAC/PHY
- 2x Intel® i210 (MAC/PHY) Ehternet controller
- Interface
- 10/100/1000 GbE connection
- LPC
- LPC UART NCT5104D (Nuvoton)
- GPU Feature Support
- 7th generation Intel® graphics core architecture with four execution units
Supports two independent displays 3D graphics hardware acceleration
Supports for DirectX 11, OCL 1.1, OGL ES Halt/2.0/1.1, OGL 3.2
Video decode hardware acceleration including support for H.264, MPEG2,
MVC, VC-1, WMV9 and VP8 formats
Video encode hardware acceleration including support for H.264, MPEG2 and MVC formats
- LVDS
- Single/dual channel 18/24-bit LVDS from eDP
- VGA
- Yes
- USB
- 3x USB 2.0 (1x on mSATA)
- SATA
- 1x SATA 3Gb/s shared with mSATA (optional 2nd SATA 3GB/s port w/o mSATA support)
- GPIO
- 8x
- Serial
- 2x RS-232/485 (with full handshake) + 2x RS-232/485 (TX,RX,CTS,RTS only)
- Standard Input
- ATX = 5V±5% / 5Vsb ±5% or AT = 5V±5%
- Management
- ACPI 5.0 compliant
- Power States
- C1-C6, S0, S3, S4, S5 (Wake on USB S3/S4, Wake on LAN S3/S4/S5)
- ECO mode
- supports deep S5 for power saving
- Standard Support
- Windows® 7/8 32/64-bit, Linux 32/64-bit
- Extended Support (BSP)
- WES7/8, WEC7, Linux, QNX, VxWorks
- Form Factor
- PC/104 Version 2.6
- Dimension
- 90 mm x 96 mm
- Operating Temperature
- Standard: 0°C to +60°C
Extended Temperature: -40°C to 85°C (SKU dependent, by screening)
- Humidity
- 5-90% RH operating, non-condensing
5-95% RH storage (and operating with conformal coating)
- Shock and Vibration
- IEC 60068-2-64 and IEC-60068-2-27
MIL-STD-202F, Method 213B, Table 213-I, Condition A and Method 214A,
Table 214-I, Condition D
- HALT
- Thermal Stress, Vibration Stress, Thermal Shock and Combined Test
- Intelligent Middleware SEMA®
- Local management, control of embedded computer systems
Extended EAPI for monitoring, controlling and analytics applications
Multiple OS support and across platforms (x86, ARM)
