Advantech AIMB-503,
MicroATX Motherboards

Specification Download

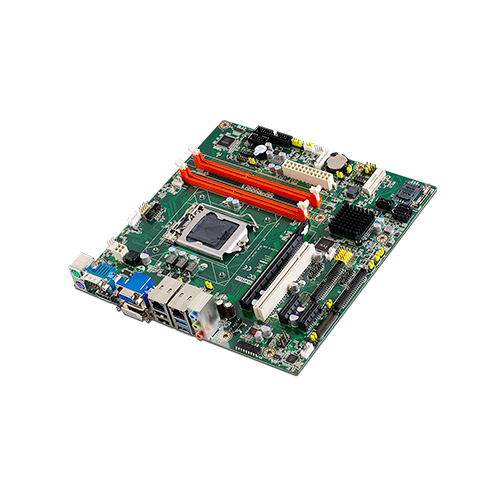

AIMB-503, MicroATX Motherboards

Product Manufacturer - Advantech

▶︎　Supports Intel® Core™ i7/i5/i3 processor with B85/H81 chipset

▶︎　Two DIMM sockets support up to 16 GB DDR3/DDR3L 1333/1600 MHz

　　SDRAM

▶︎　Supports Tri display of VGA, DVI, LVDS and two GbE LAN

▶︎　Supports 10 COM, 2 USB 3.0, 7 USB 2.0, TPM 1.2 (optional)

▶︎　Supports WISE PaaS/RMM, McAfee, Acronis and Embedded Software

　　APIs

Product Specifications

Form Factor

Form Factor
Micro ATX
Micro ATX

Processor

CPU
4th Gen. Intel Core i7/i5/i3/Pentium/Celeron processor
4th Gen. Intel Core i7/i5/i3/Pentium/Celeron processor

CPU TDP
65W/54W/45W/35W
65W/54W/45W/35W

Frequency
2.3GHz~ 3.5GHz
2.3 ~ 3.5 GHz

Core Number
2 / 4
2 / 4

L3 Cache
3 ~ 8MB
3 ~ 8MB

BIOS
AMI EFI 128Mbit
AMI EFI 128Mbit

Chipset
Intel H81
Intel H81

Memory

Technology
DDR3 1333/1600 MHz
DDR3 1333/1600 MHz

Max. Capacity
16GB
16GB

ECC Support
No
No

Socket
2 x 204 pin SODIMM
2 x 204 pin SODIMM

Display

Controller
Intel HD Graphics
Intel HD Graphics

Graphic Engine
DirectX 11, OpenCL1.1 and OpenGL 3.1 support
DirectX 11, OpenCL1.1 and OpenGL 3.1 support

Graphic Memory
1GB maximum shared memory with 2GB and above system memory installed
1GB maximum shared memory with 2GB and above system memory installed

LCD (TTL/LVDS/eDP)
LVDS (Optional)
0

DDI (HDMI/DVI/DisplayPort)
DVI-D/DP
DVI-D/DP

Multiple Display
Dual
Dual

Expansion

PCI Express x 16
1
1

PCI Express x 4
0
0

PCI Express x 1
2
2

SMBus
0
0

Ethernet

Controller
GbE LAN1: Realtek RTL8111E, GbE LAN2: Realtek RTL8111E
GbE LAN1: Realtek RTL8111E, GbE LAN2: Realtek RTL8111E

Speed
10/ 100/ 1000 Mbps
10/ 100/ 1000 Mbps

Connector
RJ45 x 2
RJ45 x 1

Audio

Audio Interface
HD Audio
HD Audio

CODEC
Realtek ALC892, High Definition Audio (HD)
Realtek ALC892, High Definition Audio (HD)

Connector
2 (Line out, Mic-in)
2 (Line out, Mic-in)

Watchdog Timer

Watchdog Timer
Yes
Yes

Storage

RAID
Software RAID 0, 1, 5, 10
Software RAID 0, 1, 5, 10

I/O

USB3.0
2
2

USB2.0
7
7

GPIO
8-bit GPIO
8-bit GPIO

COM Port
10 ( 8 x RS232, 2 x RS232/ 422/ 485)
2 ( 2 x RS-232 )

Keypad
0
0

TPM
Optional
Optional

Smart Fan
5
5

Power

Power Type
ATX
ATX

Connector
ATX24P
ATX24P

Power Consumption (Idle)
1A @ 5V / 0.94A @ 3.3V / 0.44A @ 12V / 0.23A @ 5Vsb / 0A @ -12V/1.91A @ 5V / 0.27A @ 3.3V / 0.64A @ 12V / 0.16A @ 5Vsb / 0.14A @ -12V
1A @ 5V / 0.94A @ 3.3V / 0.44A @ 12V / 0.23A @ 5Vsb / 0A @ -12V/1.91A @ 5V / 0.27A @ 3.3V / 0.64A @ 12V / 0.16A @ 5Vsb / 0.14A @ -12V

Power Consumption (Full Load)
3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V
3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V
