Rhodeus, PC/104

Product Manufacturer - Diamond Systems

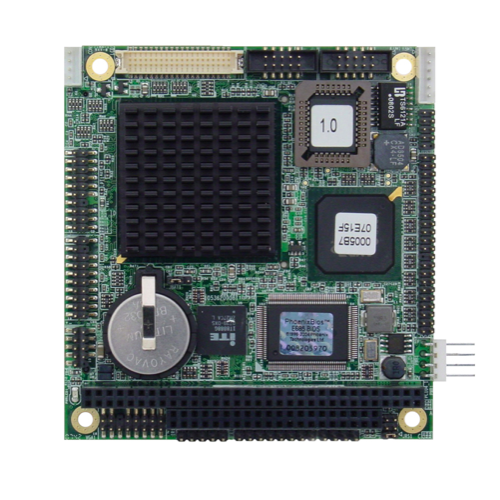

Rhodeus is a fan-less PC/104 SBC which features the AMD Geode LX800 low power consumption processor running at 500MHz. It uses high speed DDR SDRAM providing maximum capacity at 1GB. Rhodeus offers fully integrated PC functionality with low power consumption which allows Rhodeus to operate in harsh environments where the airflow for heat dissipation is restricted and heat sinks or fans are unacceptable. Its ruggedability gives it the power to perform round-the-clock in unattended environments.

Other advantages of Rhodeus includes high speed 10/100 Ethernet LAN and ample I/O interfaces, 2 serial ports, 2 USB 2.0 ports, parallel port for peripheral connection, 1 ATA-33 channel, Compact Flash Type-II socket, PC/104 expansion bus, LCD & CRT interface, floppy, and watchdog timer. Rhodeus has all the necessary features and expansion capability in 96 X 90 mm form factor, which makes it ideal for applications where space is limited but multiple I/O configurations are needed. Rhodeus supports Windows 2000, Windows XP, Windows CE 5.0, and Linux.

Product Features

▶︎　Low Power PC/104 Single Board Computer

▶︎　AMD Geode LX800 Processor at 500MHz

▶︎　1 x 200-pin DDR SO-DIMM up to 1 GB SDRAM

▶︎　10/100Mbps Ethernet

▶︎　ATA/IDE : 1 x Ultra DMA 33 IDE drives

▶︎　Flash Disk : 1 x Disk On Chip Socket

　　1 x Type II CompactFlash Socket

▶︎　Support CRT and 18/24 bit TTL

▶︎　2 x USB 2.0 Ports and 2 x Serial Ports

▶︎　-40ºC to +85ºC or

　　-20ºC to +71ºC operating temperature
