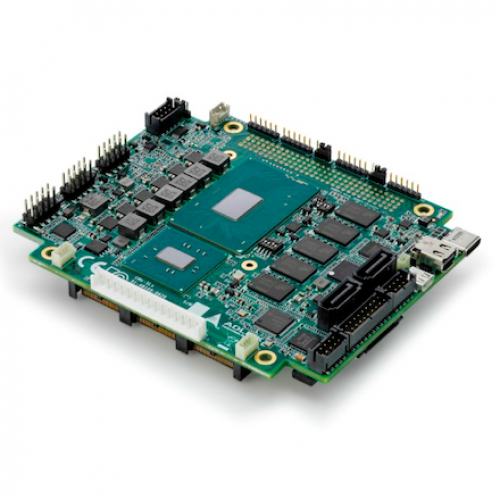

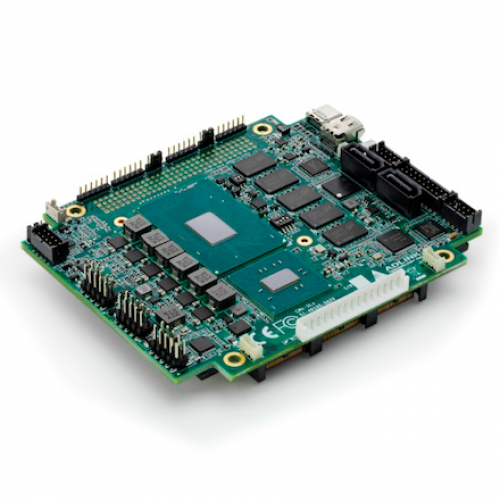

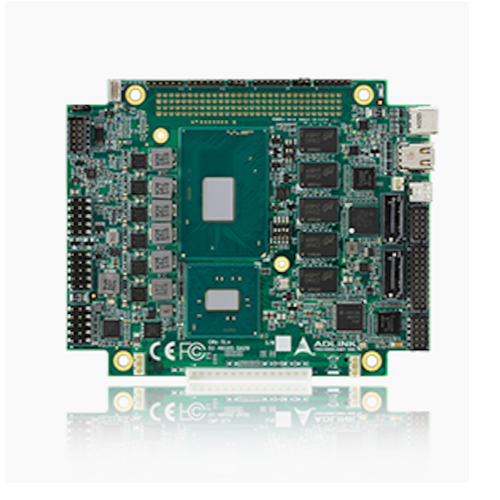

The CMx-SLx is a PCI/104-Express Type 1 Single Board Computer (SBC) featuring the 64-bit 6th Gen. Intel® Core™ i3 processor (formerly "Skylake-H"), supported by the Intel® CM236 Chipset. The CMx-SLx is specifically designed for customers who need high-level processing and graphics performance in a long product life solution. The CMx-SLx Intel processor supports Intel Hyper-Threading Technology (i3-6102E = 2 cores, 4 threads) and 8 GB of soldered ECC DDR4 memory at 1866/2133 to achieve optimum overall performance.
Integrated Intel® Generation 9 Graphics includes features such as OpenGL 5.x, OpenCL 2.x, DirectX 2015, DirectX 12, Intel® Clear Video HD Technology, Advanced Scheduler 2.0, 1.0, XPDM support, and DirectX Video Acceleration (DXVA) support for full HEVC/VP8/VP9/AVC/MPEG2 hardware codec. Graphics outputs include single-channel 18/24-bit LVDS (eDP x4 lanes optional) and three DDI ports supporting HDMI/DVI/DisplayPort.
The CMx-SLx is specifically designed for customers with high-performance processing graphics requirements who want to outsource the custom core logic of their systems for reduced development time.
The CMx-SLx features one mini DisplayPort (DDI1), one micro HDMI port (DDI2), and one single channel 18/24-bit LVDS port (eDP), two Gigabit Ethernet ports, four USB 2.0 ports, two COM ports, eight GPIOs (from BMC), two SATA 6Gb/s ports, and one onboard SATA SSD supporting SLC (up to 32GB) and MLC (up to 64GB). The module is equipped with an SPI AMI EFI BIOS with CMOS backup, supporting embedded features such as fail safe BIOS, remote console, CMOS backup, hardware monitor, and watchdog timer.
The cExpress-SL is specifically designed for customers with high-performance processing graphics requirements who want to outsource the custom core logic of their systems for reduced development time. The cExpress-SL features a single onboard Gigabit Ethernet port, up to six PCIe Gen3/2 ports (build option), four USB 3.0 ports, four USB 2.0 ports, and up to three SATA 6Gb/s ports. Support is provided for SMBus and I2C. The module is equipped with SPI AMI EFI BIOS with CMOS backup, supporting embedded features such as remote console, CMOS backup, hardware monitor, and watchdog timer.
The CMx-SLx is capable of working in the temperature ranges of 0°C~60°C (standard) and -40°C~85°C (extended).
▶︎ 6th gen. Intel Core Processor (formerly codenamed Skylake)
▶︎ Up to 8GB DDR4-ECC soldered memory
▶︎ 3x DDI channels, 1x micro HDMI, 1x mini DP and
1x 18/24 bit single channel LVDS
▶︎ 4x PCIe x1 and 1x PCIe x 16 (PEG) configurable as
1x PCIe x16 or 2x PCIe x8 or 1x PCIe x8 + 2x PCIe x4
▶︎ 2x GbE LAN, 2x SATA 6Gb/s, 1x USB 3.1, 6x USB 2.0,
2x COM, 8x GPIO
▶︎ Supports Smart Embedded Management Agent (SEMA®)
▶︎ Extreme Rugged operating temperature
-40°C to +85°C variant
