Advantech AIMB-505, MicroATX Motherboards

Specification Download

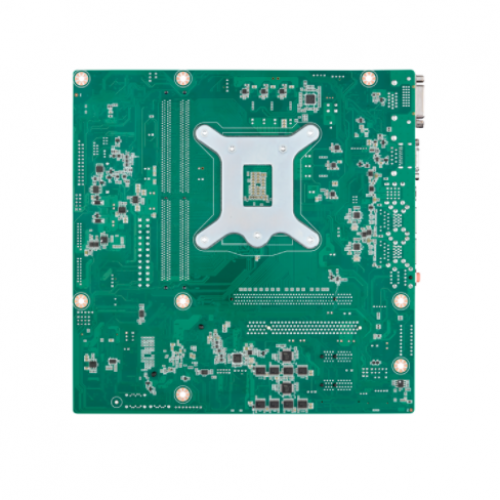

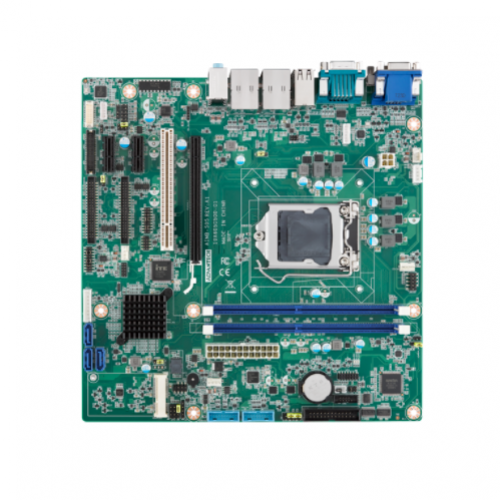

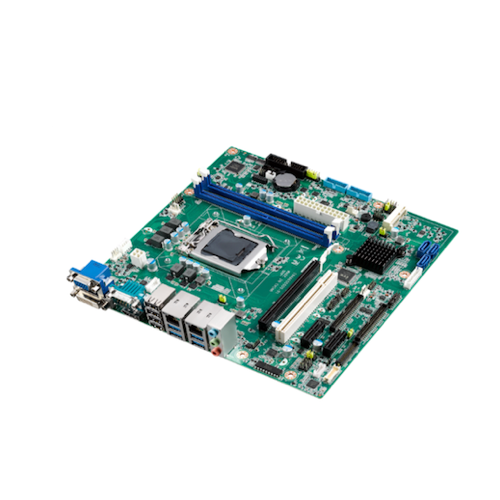

AIMB-505, MicroATX Motherboards

Product Manufacturer - Advantech

▶︎　Supports Intel® Core™ i7/i5/i3 processor with H110 chipset

▶︎　Two DIMM sockets support up to 32 GB DDR4 2133 MHz SDRAM

▶︎　Supports Dual display of VGA, DP, DVI, eDP, LVDS (optional) and two

　　GbE LAN

▶︎　Supports 10 COM, 8 USB 3.0, 6 USB 2.0, TPM 1.2 (optional)

▶︎　Supports WISE PaaS/RMM, McAfee, Acronis and Embedded Software

　　APIs

Product Specifications

Form Factor

Form Factor
Micro ATX
Micro ATX

Processor

CPU
Intel Core i7/ i5/ i3/ Pentium/ Celeron
Intel Core i7/ i5/ i3/ Pentium/ Celeron

CPU TDP
65W / 35W
65W / 35W

BIOS
AMI EFI 128Mbit
AMI EFI 128Mbit

Core Number
2 / 4
2 / 4

Frequency
2.3GHz ~ 3.6GHz
2.3GHz ~ 3.6GHz

L3 Cache
2 ~ 8MB
2 ~ 8MB

Chipset
Intel H110
Intel H110

Memory

Max. Capacity
32 GB
32 GB

Technology
DDR4 2133MHz
DDR4 2133MHz

ECC Support
No
No

Socket
2 x 288 pin DIMM
2 x 288 pin DIMM

Display

Controller
Intel HD Graphics
Intel HD Graphics

Graphic Engine
DirectX11.1, Open GL 4.0
DirectX11.1, Open GL 4.0

Graphic Memory
1GB maximum shared memory with 2GB and above system memory installed
1GB maximum shared memory with 2GB and above system memory installed

VGA
Up to 1920 x 1200 at 60 Hz
Up to 1920 x 1200 at 60 Hz

LCD (TTL/LVDS/eDP)
eDP: support 3840x2160@ 60Hz / LVDS: support 48bits 1920x1200 (optional)
eDP: support 3840x2160@ 60Hz / LVDS: support 48bits 1920x1200 (optional)

DDI (HDMI/DVI/DisplayPort)
DP: max resolution 4096 x 2304 @ 60Hz
DP: max resolution 4096 x 2304 @ 60Hz

Multiple Display
Dual
Dual

Expansion

PCI Express x 16
1
1

PCI Express x 1
2
2

SMBus
1
1

Ethernet

Controller
GbE LAN1: Realtek RTL8111G-CG, GbE LAN2: Realtek RTL8111G-CG
GbE LAN1: Realtek RTL8111G-CG

Speed
10/ 100/ 1000 Mbps
10/ 100/ 1000 Mbps

Connector
RJ45 x 2
RJ45 x 2

Audio

Audio Interface
HD Audio
HD Audio

CODEC
Realtek ALC892, High Definition Audio (HD)
Realtek ALC892, High Definition Audio (HD)

Connector
2 (Line out, Mic-in)
2 (Line out, Mic-in)

Watchdog Timer

Watchdog Timer
Yes
Yes

Storage

RAID
None
None

SATA
3 x SATA III (Max. Data Transfer Rate 600 MB/s)
3 x SATA III (Max. Data Transfer Rate 600 MB/s)

I/O

GPIO
8-bit GPIO
8-bit GPIO

USB3.0
8
2

USB2.0
6
6

COM Port
10 ( 8 x RS232, 2 x RS232/ 422/ 485)
2 (2 x RS-232)

Keypad
1
1

TPM
Optional
Optional

Smart Fan
4
4

Power

Power Type
ATX
ATX

Connector
ATX24P
ATX24P

Power Consumption (Full Load)
3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V
3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V
